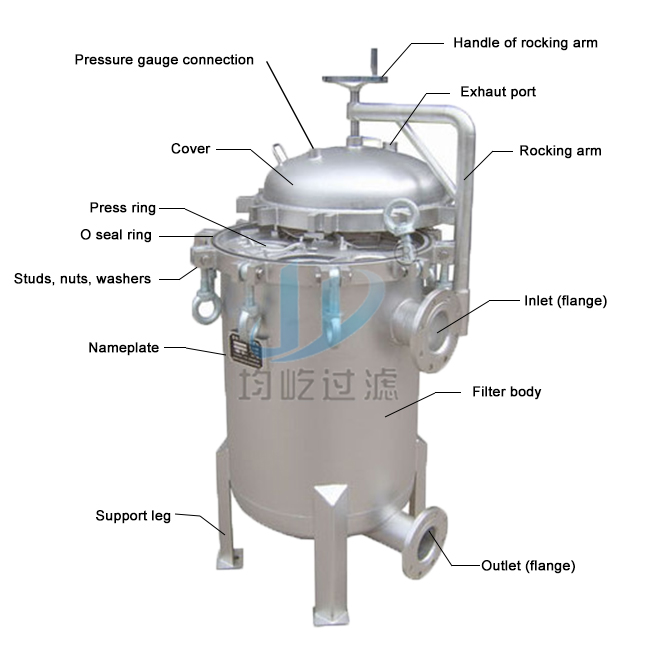

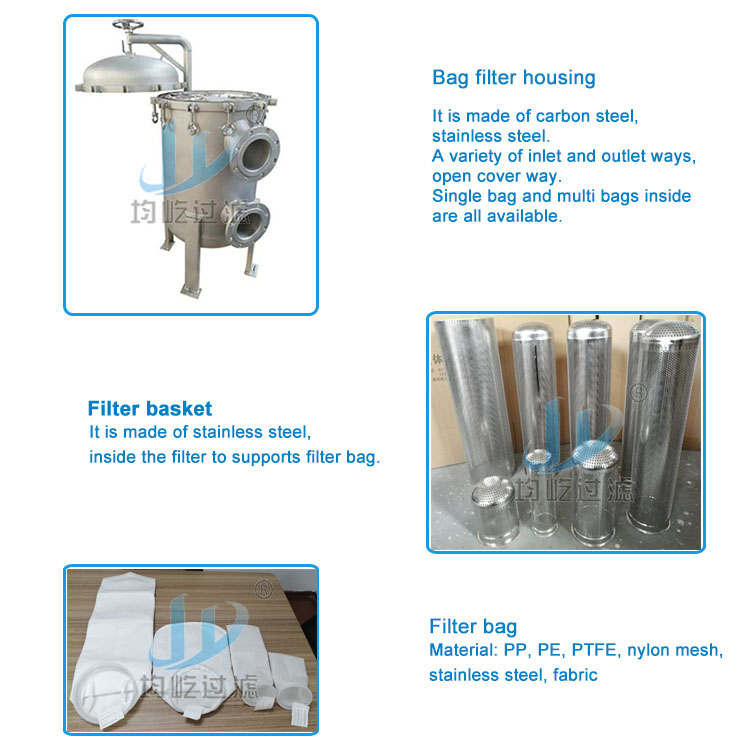

Bag Filter is composed of housing, filter bag and supporting net basket. It is a kind of high-efficiency and precision filtration system that realizes soild-l
Bag Filter is composed of housing, filter bag and supporting net basket. It is a kind of high-efficiency and precision filtration system that realizes soild-liquid separation through pressurized filtration. Bag Filter is divided into single bag filter and multi bag filter;
| Item | Stainless Steel Multi Bag Filter Ho |
| Type of filiter bag | #2 |
| Number of filter bag | From 2 pieces of bags to 50 pieces of bags for your choice |
| Material of filter bag | PP, PE, PTFE, nylon, weaving |
| Filtering pressure | 0.5---1.6MPA |
| Filtering temperature | 200 degrees |
| Filtering rating | 0.5μm-------200μm |
| Filtering area | 0.2----20M2 |
| Theoretical flow | 0---100M3/H |
| Inlet/ outlet pipe | 2---10 inches |
| Material of filter housing | Carbon Steel/304/316/316L |
| Surface treatment of housing | Polishing/Sand blasting/Painting (Carbon steel) |
| Model | Filteration Area （M2） | InIet/Outlet(mm) | Maximum Flow(Viscosity=1 cps) |
| JYMF--2P | 1.0 | DN65 | 80M3/H |
| JYMF--3P | 1.5 | DN80 | 120M3/H |
| JYMF--4P | 2.0 | DN100 | 160M3/H |
| JYMF--5P | 2.5 | DN150 | 200M3/H |
| JYMF--6P | 3.0 | DN200 | 240M3/H |
| JYMF--7P | 3.5 | 280M3/H | |
| JYMF--8P | 4.0 | DN250 | 320M3/H |
| JYMF--9P | 4.5 | 360M3/H | |
| JYMF--10P | 5.0 | 400M3/H | |
| JYMF--12P | 6.0 | DN300 | 480M3/H |
| JYMF--16P | 8.0 | 640M3/H | |
| JYMF--18P | 9.0 | DN350-500 | 720M3/H |
| JYMF--20P | 10.0 | 800M3/H | |
| JYMF--22P | 11.0 | 880M3/H | |
| JYMF--24P | 12.0 | 960M3/H |
