DN40 - DN200 Chinese Factory Direct Sale Parallel Bag Filter for Drinking Water Filtration

Product descriptions from the supplier

Product Overview

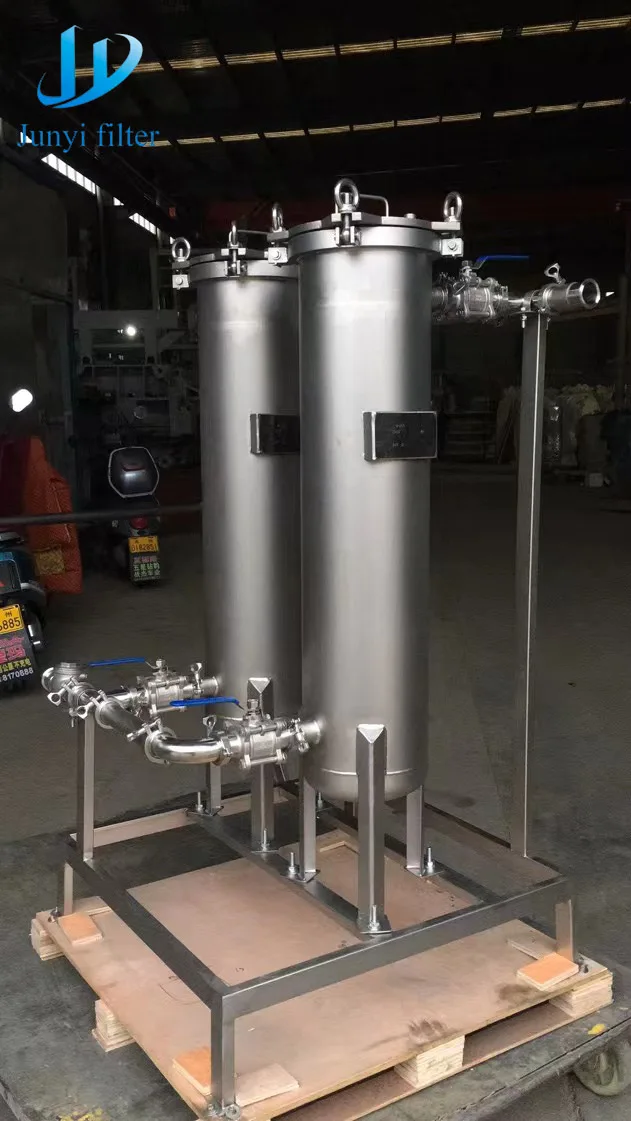

Mobile Parallel Bag Filter

Mobile filter, also known as trolley filter. Trolley filter system is a new type of filter system composed of single or multiple bag filters, bag filters, filter bags, pumps, pipe fittings, valves, trolleys, etc. it can select different filter combinations according to the different needs of different materials, and can be designed from primary to tertiary filtration, so as to achieve the ideal requirements of excellence.

Features

Good sealing Special sealing ring and the ring mouth of the filter bag to strictly prevent internal and external leakage. The replacement is convenient, safe and energy-saving The side leakage probability of the filter bag is small, which can accurately ensure the filtration accuracy and quickly replace the filter bag.

High filtering precision and wide application range High filtration precision, suitable for any fine particles or suspended solids, and the filtration range can be from 0.5 to 200 microns.

Strong mobility The filtering trolley can be easily moved. The pneumatic diaphragm pump can adjust the flow, has a certain suction head and lift, and has self-protection function. Even if the filtering is blocked, the pump will not be damaged.



Products Show

Specification

Model		Filtration area(㎡)	Diameter of inlet/outlet (mm)	Setting of working pressure	Max flow speed (viscosity 1m㎡/s)
JYSF-3#	Single Bag Filter	0.09	DN25	Normal bag filter≤0.6MPA (Designed pressure 1.0MPA)	5m³/h
JYSF-4#		0.12	DN25		8m³/h
JYSF-1#		0.25	DN40		20m³/h
JYSF-2#		0.5	DN50		40m³/h
JYSF-5#		1	DN65		80m³/h



Company Profile

Shanghai Junyi Filter Equipment Co., Ltd. specializes in the manufacturing and sales of filter equipment. We have professional and experienced technical team, production team and sales team, provide good service before and after sales. Adhering to the modern management mode, we always make the precision manufacturing, explore new opportunity and make the innovation.

After years of hard exploration, we has established a complete and effective service system and built an experienced service team, which not only provides customers with site planning and drawing of the layout and flow chart, but also can send our technical personnel to the site to guide the installation and commission for our customers.



We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We always final Inspection before shipment.

We produce more than 200 different models of the filter. The main products are the Press Filter / Bag Filter Housing / Automatic self cleaning filter / Basket filter / Magnetic filter / Candle filter / Leaf filter / Cartridge filter housing / Filter Plate / Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc. These equipment are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.

Packing & Shipping

FAQ

Q: Are you manufacturer?

A: Yes. We are experienced manufacturer of filter equipment.



Q:What products you provide?

A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.

Q: How to select the type you needed?

A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.



Q.Is it easy to operate for the new user ?

A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.



Q: What's MOQ?

A: 1 PCS.



Q: Do you accept OEM?

A: Yes.



Q:What's the payment terms ?

A: T/T, Western Union, L/C , Alibaba trade order or others. Generally 50% in advance, 50% before shipping.



Q:Quality Warranty.

A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
