Electric Brush Type Self-cleaning Filter Industrial Water Treatment Automatic Cleaning Filter

Product descriptions from the supplier

Product Overview

Self Cleaning Filter

Junyi series self-cleaning filter is designed for continuous filtration to remove impurities, uses a high-strength filter mesh and
stainless steel cleaning components, to filter, clean and discharge automatically.

In the whole process, the filtrate does not stop flowing, realizing continuous and automatic production.

FEATURES AT A GLANCE

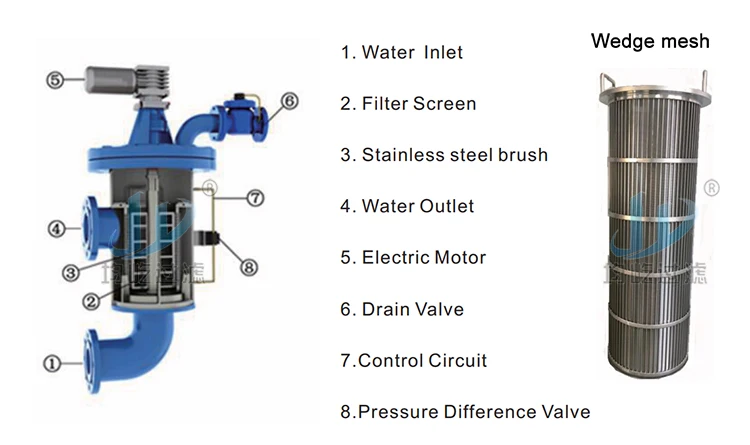

Working Principle of Self-cleaning Filter

The liquid to be filtered flows into the filter through the inlet, then flows form inside to outside of the filter mesh, the
impurities are intercepted on the inner of the mesh.
When the pressure difference between inlet and outlet of the filter reaches the set value or the timer reaches the set time, the
differential pressure controller sends a signal to motor to rotate the brush/scraper for cleaning, and the drain valve opens at

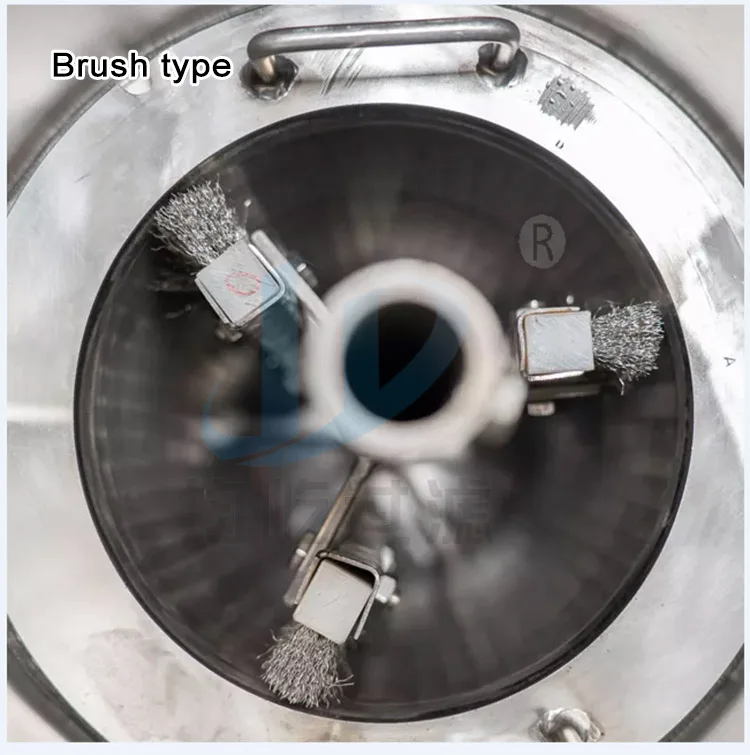

the same time. The impurity particles on the filter mesh are brushed by the rotating brush/scraper, then discharged from the drain
outlet.

PRODUCT SPECIFICATIONS

Model	Flow (M3/H)	Inlet/Outlet	Drain Outlet	Diameter of Housing
JYSCF-50	20	DN50	DN25	219
JYSCF-65	30	DN65	DN25	273
JYSCF-80	40	DN80	DN25	273
JYSCF-100	60	DN100	DN50	273
JYSCF-125	100	DN125	DN50	273
JYSCF-150	150	DN150	DN50	350
JYSCF-200	250	DN200	DN50	377
JYSCF-250	400	DN250	DN50	426
JYSCF-300	500	DN300	DN50	529
JYSCF-350	750	DN350	DN80	529
JYSCF-400	1000	DN400	DN80	600
JYSCF-450	1200	DN450	DN100	600



We are a factory, we can customize products according to user requirements, and provide drawings for confirmation before production.

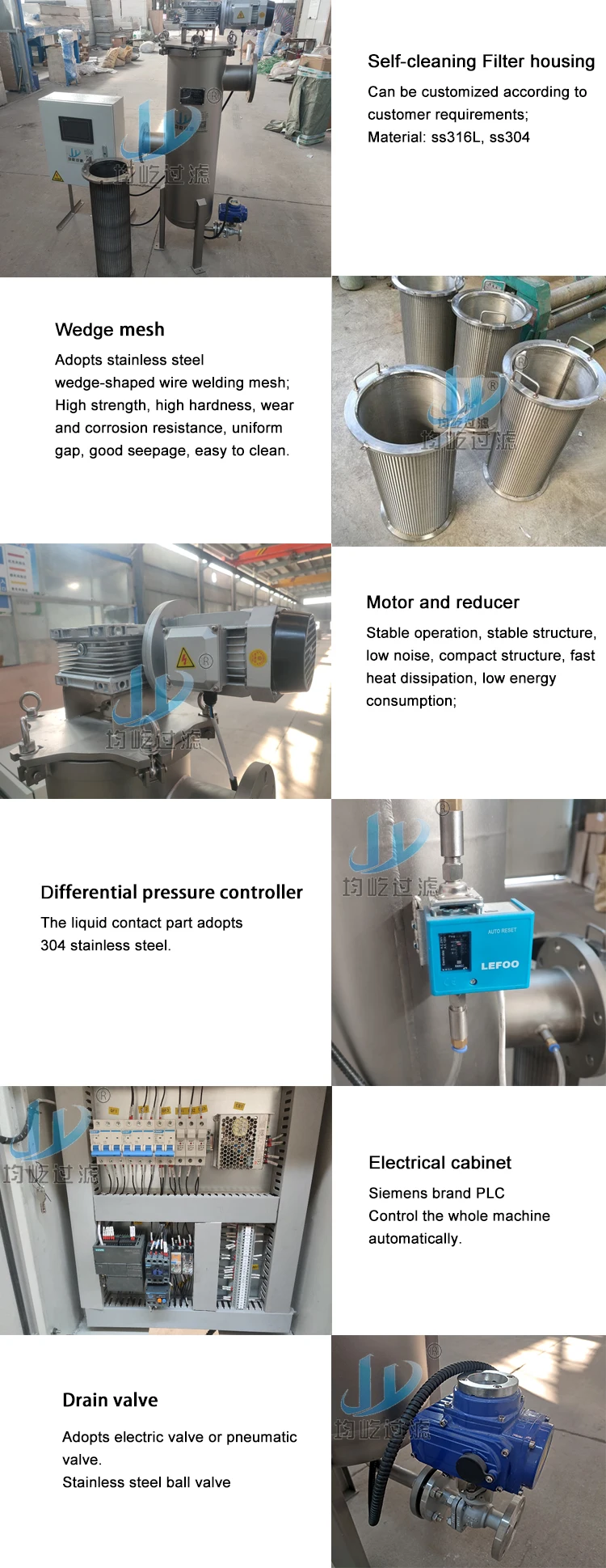

PRODUCT CONFIGURATION

SIMILAR PRODUCTS

SALES AND SERVICE NETWORK

Shanghai Junyi Filter Equipment Co., Ltd. specializes in the manufacturing and sales of filter equipment. We have professional and experienced technical team, production team and sales team, provide good service before and after sales. Adhering to the modern management mode, we always make the precision manufacturing, explore new opportunity and make the innovation.

After years of hard exploration, we has established a complete and effective service system and built an experienced service team, which not only provides customers with site planning and drawing of the layout and flow chart, but also can send our technical personnel to the site to guide the installation and commission for our customers.



We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We always final Inspection before shipment.

We produce more than 200 different models of the filter. The main products are the Press Filter / Bag Filter Housing / Automatic self cleaning filter / Basket filter / Magnetic filter / Candle filter / Leaf filter / Cartridge filter housing / Filter Plate / Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc. These equipment are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.

FAQ

Q: Are you manufacturer?

A: Yes. We are experienced manufacturer of filter equipment.



Q:What products you provide?

A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.

Q: How to select the type you needed?

A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.



Q.Is it easy to operate for the new user ?

A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.



Q: What's MOQ?

A: 1 PCS.



Q: Do you accept OEM?

A: Yes.



Q:What's the payment terms ?

A: T/T, Western Union, L/C , Alibaba trade order or others. Generally 50% in advance, 50% before shipping.



Q:Quality Warranty.

A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
