High Solid Recovery Rate Plate Frame Filter Press for Ceramics Industry

Product descriptions from the supplier

Product Overview

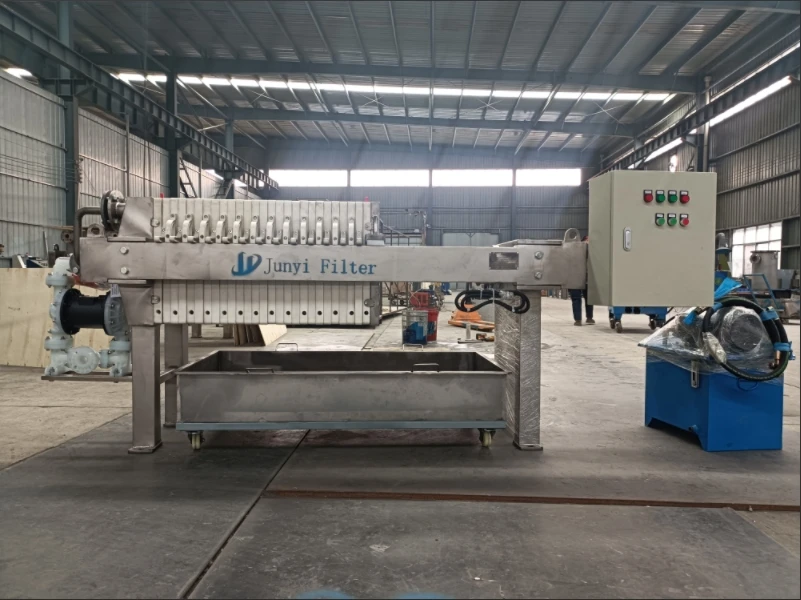

Junyi series Plate and Frame Filter Press is widely used for solid-liquid separation, with perfect performance, easy operation.
Working principle: The suspended solution is pumped into filter chamber, under the feeding pressure, the filtrate pass through the filter media and then discharged from the outlet. The solid will becomes to filter cakes. Thus realize solid liquid separation.
One plate and one frame from a filter chamber, the cloth is hung on the filter plate, which is very convenient to replace.

Type of plate closing method: Manual jack type, manual oil cylinder type, and automatic hydraulic type.

Product Details

1. Reinforced Beam of filter press The main beam is made of Q345B, stronger guarantee the machine life time longer and more stable when operating.

2. Filter plate and frame Using high quality PP, ensuring filter plates has the good characteristics of anti-corrosion and strong acid and strong alkali resistance.

3. Filter cloth Using high quality polypropylene, strong acid and strong alkali resistance or high quality polyester acid. We also can customized the filter cloth size as you required.

Material of main beam			Carbon steel, covered with stainless steel
Form of feeding			Corner feeding
Form of liquid discharging			Seen flow, unseen flow
Matched pump			Gear pump, Diaphragm pump, Screw pump, Slurry pump, etc.
Matched pump			Manual jack type, manual oil cylinder type, automatic hydraulic

Product Paramenters

Mode	Filter Area m²	Plate Size mm	Cake thickness mm	Filter chamber volume L
BAMQ1/320-25	1	320*320	25	13
BAMQ2/320-25	2			25
BAMQ3/320-25	3			38
BAMQ4/450-25	4	450*450		51
BAMQ8/450-25	8			102
BAMQ10/450-25	10			126
BAMQ12/450-25	12			152
BAMQ16/450-25	16			203
BAMY15/630-25	15	630*630		150
BAMY20/630-25	20			298
BAMY15/630-25	15			150
BAMY20/630-25	20			298
BAMY30/630-25	30			452
BAMY40/630-25	40			595

Company Profile

Application: It is suitable for the petroleum, oil industry, chemical, dye, metallurgy, light industry, coal washing, textile, water treatment, energy, etc.

After years of hard exploration, we has established a complete and effective service system and built an experienced service team, which not only provides customers with site planning and drawing of the layout and flow chart, but also can send our technical personnel to the site to guide the installation and commission for our customers.

We have a very strict and complete quality control system, which promises that goods we produced are always of the best quality, the enough inspectors to ensure that each product can meet the quality requirements of customers. We always final Inspection before shipment.

Shanghai Junyi Filter Equipment Co., Ltd. specializes in the manufacturing and sales of filter equipment. We have professional and experienced technical team, production team and sales team, provide good service before and after sales. Adhering to the modern management mode, we always make the precision manufacturing, explore new opportunity and make the innovation.

We produce more than 200 different models of the filter. The main products are the Press Filter / Bag Filter Housing / Automatic self cleaning filter / Basket filter / Magnetic filter / Candle filter / Leaf filter / Cartridge filter housing / Filter Plate / Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc. These equipment are widely used for the solid-liquid separation process in the industrial of mineral processing, petroleum, chemical industry, dyestuff, metallurgy, food, coal and carbon, inorganic salts, alcohol, light industry, textiles, environmental protection, energy and so on.

Packing & shipping

SALES AND SERVICE NETWORK

FAQ

Q: Are you manufacturer?

A: Yes. We are experienced manufacturer of filter equipment.



Q:What products you provide?

A: We produce more than 200 different models of the filter. The main products are the Press Filter/Bag Filter Housing/Automatic self cleaning filter/Basket filter/Magnetic filter/ Candle filter/Leaf filter/Cartridge filter housing/Filter Plate/Filter Cloth/ Filter Cartridge /Filter Bag, also matched tanks, conveyors, etc.

Q: How to select the type you needed?

A: We will ask you some information: solid liquid kind, usage, flow rate, solid content
percentage, working temperature & pressure, etc. We have professional technical team which will work together with our sales to help you choose the suitable machine for you.



Q.Is it easy to operate for the new user ?

A: Yes. We offer you manual book and operating video. When you have any questions during using, we will answer you within 24 hours. For large projects, we can also send our engineers to your site for commissioning and training.



Q: What's MOQ?

A: 1 PCS.



Q: Do you accept OEM?

A: Yes.



Q:What's the payment terms ?

A: T/T, Western Union, L/C , Alibaba trade order or others. Generally 50% in advance, 50% before shipping.



Q:Quality Warranty.

A:12 months after the installation and commission or 18 months after it has been delivered to the site of the customer.
