Product descriptions from the supplierProducts DescriptionBasket filterThe product composition of basket filter includes cylinder, filter basket, filter medium,
Products Description
Basket filter

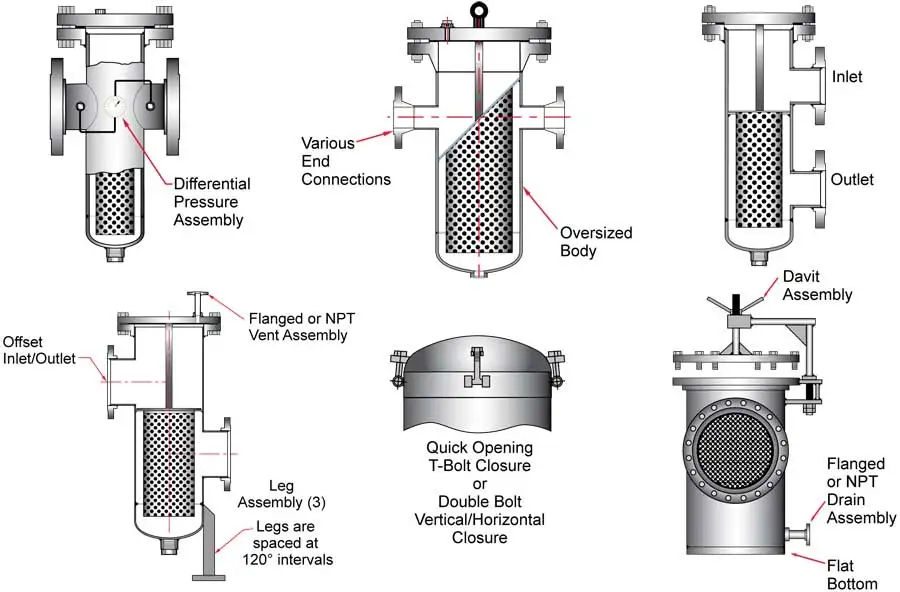

The product composition of basket filter includes cylinder, filter basket, filter medium, flange and flange cover, fastener, sewage outlet and other accessories such as pressure gauge and exhaust valve. These components work together to realize the filtering function of the basket filter and ensure its stability and reliability.The cylinder is usually made of metal plate or seamless pipe, and the material of the shell can be selected according to the use environment and requirements, such as carbon steel or stainless steel. The inside and outside surfaces of the housing are usually sandblasted or polished to improve corrosion resistance and aesthetics.
The working principle of the basket filter is that when the liquid enters the filter basket through the cylinder, the solid impurity particles are blocked in the filter basket, and the clean fluid is discharged by the filter outlet through the gap of the filter basket. In this process, the filter screen inside the basket filter intercepts the impurity particles in the fluid to achieve the purpose of solid-liquid separation or purification of the fluid.
Product Details
|
Filter filter has shown significant advantages in many fields of application, these advantages are mainly reflected in the following aspects: |
||||
|
Large filter area |
the filter hole area of the basket filter is 2-3 times larger than the diameter pipe area, so the filter area is relatively large.This design allows the basket filter to more effectively intercept impurities and particles in the fluid, improving filtration efficiency. |
|||
|
Excellent material |
The mesh of the basket filter is usually made of porous materials, such as stainless steel mesh, etc., which have good permeability and filtration effect. At the same time, the mesh size of the filter can be customized according to the need to adapt to the filtration needs of different particle sizes. |
|||
|
Compact design |
The design of the basket filter is generally more compact, takes up less space, and is easy to install in a limited space. This design makes the basket filter more advantageous in small devices or in situations where space is limited. |
|||
|
Strong applicability |
Basket filter is suitable for a variety of fluid media, including but not limited to water, oil, chemical raw materials, natural gas and other fluids pre-filtration. This wide applicability allows basket filters to be used in many fields. |
|||
|
Strong pressure capacity |
The design of the basket filter takes into account the high pressure that may exist in the liquid filtration, so the material and structure are strengthened. This allows the basket filter to withstand higher pressures, ensuring stable operation over a long period of time. |
|||
Specification
